Products / Cylinders / Hoist cylinders
PHL SERIES / PIN MOUNTED
The right fit.
The next lift.

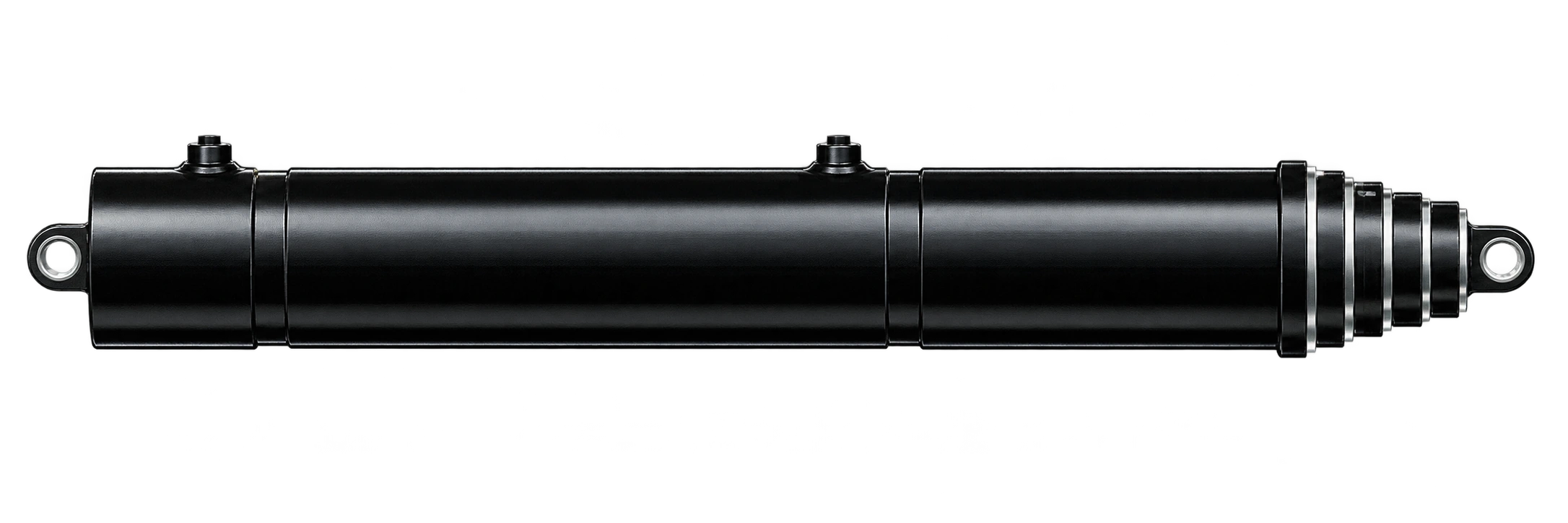

Telescopic hoist cylinders for dump trucks and trailers. Find your Phoenix model, compare dimensions and request application support.
25 modelsIn the PHL series range
6–9 inNominal bore groups
3–5 stagesModel designations
REPLACEMENT MATCH
Find your Phoenix cylinder.
Choose the make and model fitted to your truck or trailer.
YOUR PHOENIX REPLACEMENT
Select your existing make and model to see the Phoenix model.
Catalogue cross-references. Confirm mounting dimensions, ports and operating pressure against the Phoenix drawing before ordering.
FIND YOUR CYLINDER
One range. A precise match.
Search by Phoenix model. Select a model to view its details.
| Phoenix model | Bore / stages | Stroke (in) | Closed (in) | Configuration |
|---|
FITMENT FIRST
Let’s match the complete cylinder.
01 / IDENTIFY
Send the existing part number, nameplate and photos of both mounting ends.
02 / VERIFY
Confirm stroke, closed length, pin sizes, mounting widths, ports and application pressure.
03 / QUOTE
Request the Phoenix drawing, price and lead time for the confirmed configuration.
